What Chiller Does Your Analytical Instrument Need? ICP, AAS, and Beyond

Analytical laboratories depend on precision. Whether you are running trace-metal analysis on an ICP-MS or measuring elemental composition with XRF, the accuracy of your results hinges on factors that extend well beyond sample preparation. Temperature control is one of those factors — and it is often underestimated until something goes wrong.

A dedicated chiller for analytical instruments removes heat from critical components, maintains stable operating temperatures, and protects sensitive optics and detectors from thermal drift. In this guide, we break down why dedicated cooling matters, what each instrument type requires, and how to select the right recirculating chiller for your lab.

Why Analytical Instruments Need a Dedicated Chiller for Analytical Instruments

Modern analytical instruments generate significant heat during operation. That heat, if not managed properly, compromises measurement quality and shortens component lifespans. Here are the primary reasons dedicated cooling is essential:

Plasma Torch Cooling

Inductively coupled plasma instruments (ICP-OES and ICP-MS) sustain plasma at extremely high temperatures. The torch assembly, the RF coil, and the surrounding housing all require continuous coolant flow to prevent overheating. Without adequate cooling, the torch can degrade prematurely, and the plasma itself becomes unstable — directly affecting signal intensity and detection limits.

Detector Thermal Management

Detectors in ICP-MS systems, including electron multipliers and solid-state detectors, perform best at controlled low temperatures. Elevated detector temperatures increase dark current and electronic noise, reducing signal-to-noise ratios. Consistent cooling keeps detectors within their optimal operating window.

Optical Component Stability

Spectrometers rely on precise alignment of gratings, mirrors, and lenses. Thermal expansion — even fractions of a millimeter — shifts wavelength calibration and introduces systematic errors. A stable thermal environment around the optical bench prevents these shifts and reduces the frequency of recalibration.

RF Generator and Power Supply Cooling

The radio-frequency generators that sustain plasma operation produce substantial waste heat. Maintaining their operating temperature within specification ensures consistent power delivery to the plasma, which translates to stable excitation conditions and reproducible analytical results.

Cooling Requirements by Instrument Type

Different analytical techniques place different demands on cooling systems. The table below summarizes typical requirements across four common instrument categories:

Instrument Type	Typical Flow Rate	Temperature Range	Cooling Capacity	Key Cooling Targets
ICP-OES	12–18 L/min	18–22°C	2.5–4.5 kW	Plasma torch, RF coil, optics
ICP-MS	15–20 L/min	18–20°C	3.0–4.6 kW	Interface cones, detector, vacuum pumps
AAS (Flame/Graphite)	8–12 L/min	18–22°C	1.3–2.5 kW	Burner head, optics, power supply
XRF	10–15 L/min	18–22°C	1.5–3.0 kW	X-ray tube, detector, sample chamber

These values represent general ranges. Always consult your instrument manufacturer’s installation manual for exact specifications, as requirements can vary between models and configurations.

What Instrument Manufacturers Typically Specify

When you review the installation requirements for most analytical instruments, manufacturers typically specify the following cooling parameters:

• Flow rate: 10–20 L/min, depending on the instrument’s heat load and internal cooling circuit design
• Coolant temperature: 18–22°C, usually with a maximum allowable fluctuation of ±1°C during operation
• Supply pressure: 1–2 bar at the instrument inlet to ensure adequate circulation through narrow internal passages
• Coolant type: Deionized or distilled water, sometimes with approved corrosion inhibitors at specified concentrations
• Conductivity limit: Often below 5 µS/cm to prevent mineral scaling in internal channels

These specifications exist for a reason. Instruments are designed around the assumption that cooling water arrives clean, at the right temperature, at the right pressure, and at sufficient volume. When any of these parameters fall outside specification, instrument performance degrades — sometimes gradually, sometimes suddenly.

Why Tolerances Matter

A flow rate that is marginally too low may not trigger an immediate alarm, but it allows hot spots to develop around the RF coil or torch assembly. Over weeks and months, this accelerates wear on seals and O-rings, eventually leading to coolant leaks that can damage expensive components.

Similarly, coolant that is just a few degrees too warm may keep the instrument running but introduces subtle baseline drift that shows up as poor reproducibility in quality control checks. Tightening your cooling parameters pays dividends in data quality and reduced maintenance costs.

Why Tap Water Often Fails

Many laboratories initially connect instruments to building water supplies or simple open-loop cooling systems. While this approach may seem cost-effective, it introduces several problems that worsen over time:

Temperature Fluctuation and Baseline Drift

Municipal water temperature varies with season, time of day, and building demand. In summer months, supply water can arrive at 25°C or higher — well above the 18–22°C window most instruments require. These temperature swings cause thermal expansion in optical components, producing wavelength shifts and baseline drift that directly affect analytical accuracy.

For ICP instruments, temperature fluctuations in the coolant translate to changes in plasma position and shape. Even small shifts alter emission line intensities, degrading calibration stability and forcing more frequent recalibration.

Mineral Deposits and Clogged Channels

Tap water contains dissolved minerals — calcium, magnesium, silica, and iron — that precipitate out when water is heated. The narrow cooling channels inside analytical instruments (some less than 2 mm in diameter) are particularly vulnerable to scale buildup. Once deposits begin forming, flow restriction increases progressively, reducing cooling efficiency and eventually triggering flow-switch alarms that shut down the instrument.

Cleaning scaled internal passages is expensive and time-consuming, often requiring factory service. In severe cases, blocked cooling channels can cause localized overheating that permanently damages components.

Biological Growth

Open-loop systems and poorly maintained reservoirs can harbor algae and bacterial biofilms. These organisms not only restrict flow but can release particles that lodge in narrow passages. Contaminated coolant also accelerates corrosion of copper and aluminum components commonly found in instrument cooling circuits.

Pressure Inconsistency

Building water pressure fluctuates with demand from other users and systems. Drops in pressure during peak usage hours can momentarily starve instruments of coolant, triggering safety interlocks or, worse, allowing brief overheating events that go undetected until performance degrades.

Selecting the Right Chiller for Your Analytical Lab

Choosing a recirculating chiller involves matching the unit’s capabilities to your instrument’s requirements. Here are the key selection criteria:

Cooling Capacity

The chiller must remove heat at least as fast as your instrument generates it. Check your instrument’s specified heat dissipation (in watts or kilowatts) and select a chiller with capacity that exceeds this value by at least 20 percent. This headroom accounts for elevated ambient temperatures in the lab and ensures the chiller does not run at maximum output continuously, which shortens compressor life.

Flow Rate and Pressure

Verify that the chiller can deliver the required flow rate at the specified inlet pressure — not just the maximum flow rate listed on the spec sheet. Flow rate at actual system pressure (accounting for tubing length, fittings, and elevation changes) is what matters. A chiller that delivers 20 L/min with no restriction may only provide 12 L/min through 5 meters of tubing with multiple bends.

Temperature Stability

For analytical work, temperature stability is arguably more important than absolute accuracy. A chiller that holds ±0.1°C is far more useful than one that can reach an exact setpoint but fluctuates by ±1°C around it. Stable temperature means stable baselines, consistent plasma conditions, and reproducible results.

Fluid Quality Management

Look for chillers with sealed reservoirs that minimize exposure to airborne contaminants. Units with integrated filtration or easy-access filter ports simplify maintenance. Some chillers include conductivity monitoring that alerts you when the coolant needs replacement — a valuable feature for protecting sensitive instrument passages.

Footprint and Noise

Laboratory space is often limited. A compact chiller that fits beside or beneath the instrument bench reduces clutter and simplifies installation. Noise is another practical consideration — units that operate below 55 dB at one meter allow comfortable conversation and phone calls in the lab without distraction.

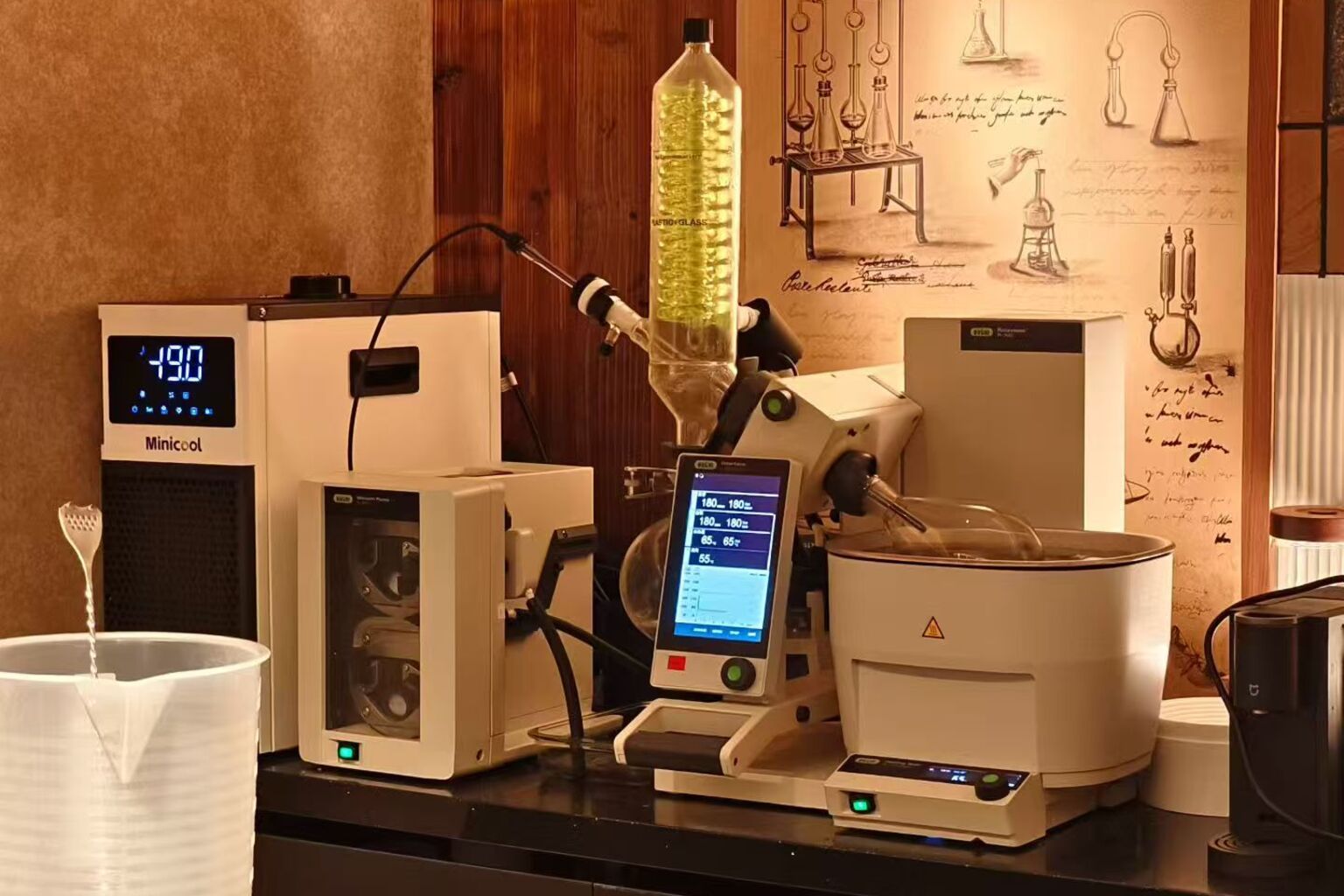

The RIGID MidiCool™ Series

The RIGID MidiCool™ series is designed specifically for laboratory and industrial cooling applications where precision matters. With cooling capacities ranging from 1.3 to 4.6 kW, flow rates up to 20 L/min, operating pressure of 1.2 bar, and temperature stability of ±0.1°C, the MidiCool™ covers the requirements of ICP-OES, ICP-MS, AAS, and XRF instruments in a compact, reliable package.

The MidiCool™ range addresses the core needs of analytical instrument cooling: consistent temperature delivery, adequate flow and pressure for multi-circuit cooling paths, and quiet operation suitable for laboratory environments.

Installation and Setup Tips

Proper installation ensures your chiller delivers its rated performance from day one. Follow these guidelines for a smooth setup:

Placement and Ventilation

Position the chiller where it has adequate ventilation on all sides — typically 15–20 cm clearance around air-cooled condenser panels. Avoid placing the unit in enclosed cabinets or against walls that block airflow. Hot air rejected by the chiller must disperse; otherwise, ambient temperature around the condenser rises and reduces cooling efficiency.

Tubing Selection

Use tubing with an internal diameter that matches or exceeds the chiller’s outlet port size. Undersized tubing creates unnecessary pressure drops that reduce flow rate at the instrument. For runs longer than 3 meters, consider stepping up one tubing size. Use smooth-bore tubing rather than corrugated flex hose where possible, as corrugations increase flow resistance.

Coolant Preparation

Fill the system with deionized or distilled water as specified by your instrument manufacturer. If a corrosion inhibitor is recommended, add it at the exact concentration specified — more is not better and can leave deposits. Record the fill date and schedule coolant replacement according to the manufacturer’s maintenance interval, typically every 6–12 months.

Priming and Air Removal

After initial fill, run the chiller with the instrument disconnected to circulate coolant and purge trapped air. Air pockets in the cooling circuit reduce effective flow and can cause localized hot spots. Most recirculating chillers self-prime within a few minutes, but tilting the unit slightly during initial fill helps air bubbles escape from the reservoir.

Temperature Setpoint

Set the chiller temperature to match your instrument manufacturer’s recommendation — typically 20°C for most analytical instruments. Avoid setting the temperature too low, as this can cause condensation on cold surfaces inside the instrument, potentially damaging electronics or optics. A setpoint 2–3°C below ambient room temperature is generally the practical minimum without condensation risk.

Flow Verification

After connecting to the instrument, verify flow rate with an inline flow meter or by timing a measured volume at the return line. Compare this measured flow to the instrument’s minimum requirement. If flow is marginal, check for kinks, restrictions, or excessive tubing length and correct before placing the instrument in service.

Ongoing Maintenance

Establish a maintenance schedule that includes monthly coolant level checks, quarterly filter inspection or replacement, and semi-annual coolant quality testing. Keep a log of maintenance activities — this documentation is valuable for troubleshooting if instrument performance issues arise later.

Frequently Asked Questions

Can I use one chiller to cool multiple analytical instruments simultaneously?

It depends on the combined heat load and flow requirements. If the total cooling demand of all connected instruments falls within the chiller’s rated capacity (with 20 percent headroom), and the pump can supply adequate flow to each instrument in parallel, a single chiller can serve multiple units. However, you must ensure that flow distribution is balanced — one instrument should not starve another of coolant. Manifolds with individual flow-control valves help manage this. For critical applications, dedicated chillers per instrument eliminate any risk of cross-interference.

How often should I replace the coolant in my recirculating chiller?

Most manufacturers recommend coolant replacement every 6 to 12 months, depending on operating hours and water quality. However, monitor coolant conductivity and appearance between changes. If the water becomes discolored, develops an odor, or conductivity rises above 5 µS/cm, replace it immediately regardless of the calendar schedule. Using high-quality deionized water and maintaining a sealed reservoir extends coolant life significantly.

What happens if my chiller’s cooling capacity is slightly below my instrument’s requirement?

An undersized chiller will run continuously at maximum output, attempting to maintain setpoint. In mild conditions, it may succeed — but during warm weather or extended analytical runs, coolant temperature will gradually rise above setpoint. This leads to thermal drift in your instrument, degraded measurement precision, and accelerated compressor wear on the chiller. Always size with adequate margin above the instrument’s stated heat load.

Is temperature stability or absolute temperature accuracy more important for analytical instruments?

Temperature stability is generally more critical. Analytical instruments can be calibrated and optimized at any temperature within their specified operating range. What causes problems is fluctuation — changing temperatures shift optical alignment, alter plasma characteristics, and introduce baseline noise. A chiller that holds ±0.1°C at 20.5°C delivers better analytical performance than one that targets 20.0°C exactly but fluctuates by ±0.5°C. Stability enables reproducibility, which is the foundation of reliable analytical chemistry.
