I spent three months chasing what I thought was a component quality issue. We had PLCs dying in outdoor kiosks — sealed IP65 enclosures, good gaskets, proper cable glands. Everything looked fine on paper. Then one morning I popped open a cabinet that had been running overnight and saw water droplets on the inside of the lid, pooling around the DIN rail. That was the moment it clicked: we didn’t have a sealing problem. We had a condensation problem.
If you’re dealing with unexplained board failures, corroded terminals, or intermittent faults in sealed enclosures — especially ones that cycle between hot days and cool nights — this is probably your issue too. Let me walk through exactly what’s happening and what actually fixes it.
Condensation Sealed Enclosure Problems: The Physics Behind the Failure

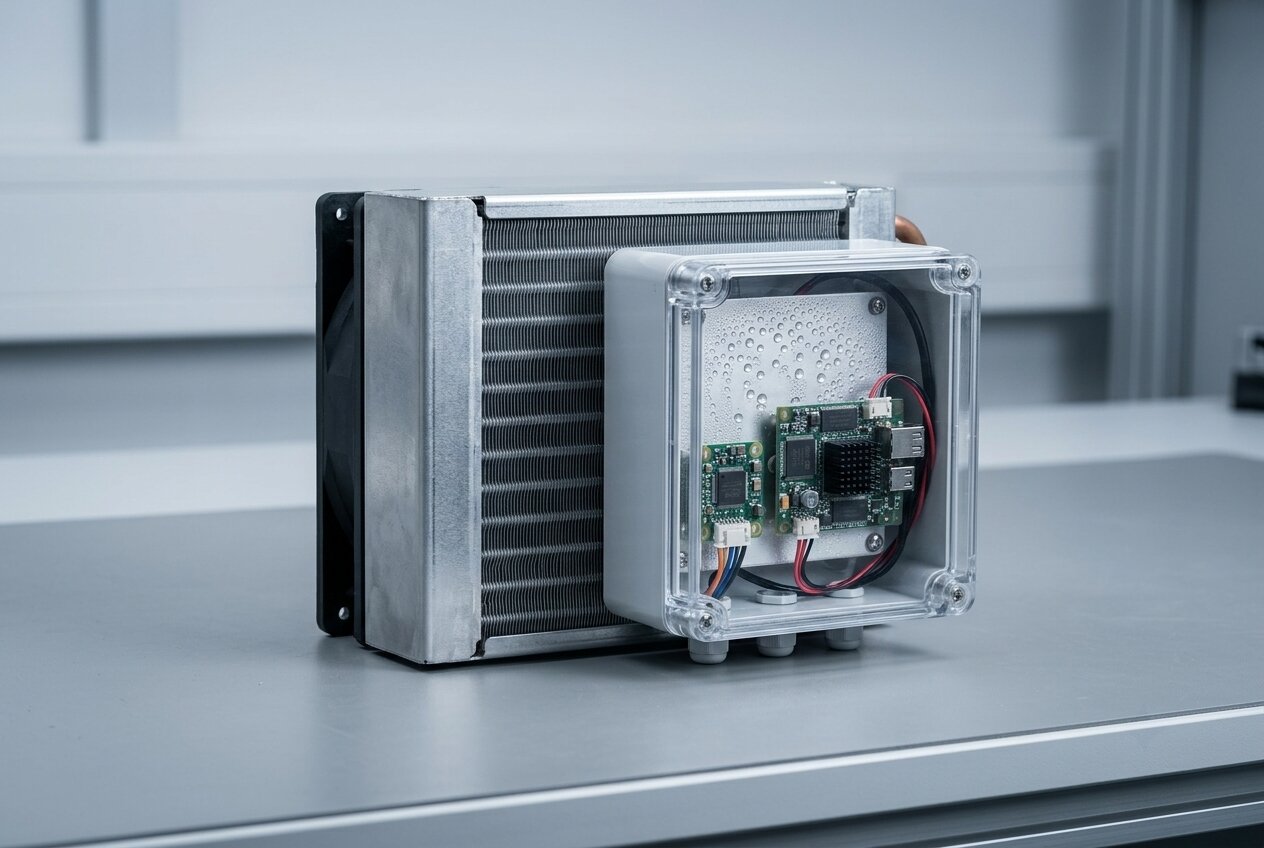

The physics are straightforward, but the implications catch a lot of people off guard. A sealed enclosure is essentially a closed atmospheric system. The air inside contains moisture — always. Even if you seal it on a dry day, there’s water vapor in that trapped air volume.
Here’s what happens during a typical 24-hour cycle:
During the day, your electronics generate heat. The internal air temperature rises to 50-60°C in a sun-exposed enclosure. Warm air holds more moisture, so the relative humidity drops and everything seems fine. The dew point is well below the surface temperatures inside.
Then evening comes. The heat load drops (or the ambient temperature falls faster than the internal temperature can follow). The enclosure walls — which are thermally connected to the outside environment — cool down first. When any internal surface drops below the dew point of the trapped air, water condenses directly onto that surface.
The cruel part? The surfaces that cool fastest are often metal — DIN rails, connector housings, PCB ground planes, heat sinks that are no longer being heated. These are exactly the surfaces where you don’t want water.
Why Sealed Enclosures Make It Worse
This is counterintuitive: sealing an enclosure tighter can actually increase condensation risk. In a vented enclosure, moisture can equalize with ambient air. In a sealed box, you trap a fixed volume of humid air. Every temperature cycle forces that moisture through condensation and evaporation cycles, redistributing water to wherever the cold spots are.
Over weeks and months, you get:
- Mineral deposits on connector pins from repeated wet-dry cycles
- Electrochemical migration between closely-spaced PCB traces
- Corrosion of dissimilar metals at terminal blocks
- Fungal growth on organic materials (wire insulation, labels, gaskets)
- Ground fault currents through surface moisture films
The failure mode is insidious because it’s intermittent. The board works fine during the day when everything is dry. Faults appear in the morning or after weather changes. If you’re troubleshooting during business hours, the evidence has literally evaporated by the time you open the cabinet.
Common Approaches That Don’t Actually Solve It
Before I found what works, I tried everything the internet suggested. Here’s why the common fixes fall short:
Silica Gel / Desiccant Packs
These work — for about two weeks. A typical desiccant pack absorbs maybe 20-30% of its weight in moisture, then it’s saturated. In a sealed enclosure that cycles daily, you’d need to swap desiccants every few weeks. That’s a maintenance burden nobody actually follows through on. I’ve opened cabinets with completely saturated desiccant packs sitting in a puddle of water. The guys who installed them three years ago definitely planned to replace them quarterly. Spoiler: they didn’t.
Breather Valves / Gore Vents
Pressure-equalizing vents with hydrophobic membranes let air pressure equalize without letting liquid water in. Good concept. But here’s the problem: they also let water vapor in. On a humid day, warm moist air enters through the vent. When the enclosure cools at night, that moisture condenses inside. You’ve actually made things worse in humid climates because now you’re importing additional moisture from the environment.
Anti-Condensation Heaters
This is the traditional solution: put a small heater inside the enclosure that keeps internal temperature above dew point. It works, but think about what you’re doing. You’re adding heat to an enclosure that already has a heat problem during the day. In summer, your electronics are struggling with high temperatures AND you’re running a heater. The energy cost is non-trivial too — a typical 50W anti-condensation heater running 12 hours a day costs real money over a year, and it’s fighting against the thing you actually need (cooling) for half the day.
Conformal Coating
Coating PCBs with a protective layer helps resist moisture damage, but it doesn’t eliminate it. Connectors can’t be coated. Terminal blocks can’t be coated. And conformal coating doesn’t help with the fungal growth, label degradation, or mechanical issues that moisture causes. It’s a defense-in-depth measure, not a solution.
What Actually Works: Active Thermal Management
The fundamental problem is temperature cycling. If you can keep internal surfaces above the dew point while also managing peak temperatures, condensation simply can’t form. The air never reaches saturation because the coldest surface is always warmer than the dew point.
This means you need active cooling that also prevents overcooling — maintaining a stable thermal environment rather than just dumping heat.
The solution I landed on was a micro DC air conditioner designed specifically for enclosures. Not a fan (which just moves humid air around), not a thermoelectric cooler (which creates a cold surface that actually attracts condensation on the wrong side), but a proper vapor-compression cooling unit that controls the entire enclosure climate.
Why Vapor Compression Beats Thermoelectric for This Application
Peltier/TEC coolers are popular for small enclosures because they’re solid-state and cheap. But they have a fundamental problem for condensation management: the cold side creates a surface that’s well below dew point. Yes, they cool the enclosure air, but they also create a condensation point on the cold plate. If your drain management isn’t perfect (and in the field, it never is), you’re concentrating moisture right at the cooler — which then drips onto whatever is below it.
A vapor-compression system removes heat without creating an exposed cold surface inside the enclosure. The evaporator coil operates above dew point when properly sized, and any condensation that does form on the coil drains through a controlled path to the exterior.
Sizing Considerations for Sealed Enclosures
The thermal load in a sealed enclosure comes from three sources:
- Internal heat generation — the electronics themselves. Add up the power dissipation of everything inside.
- Solar gain — for outdoor enclosures, this can exceed the internal heat load. A dark-colored enclosure in direct sun can absorb 500-800W/m² of solar radiation.
- Ambient conduction — heat transfer through the enclosure walls when ambient temperature exceeds desired internal temperature.
For a typical outdoor telecom cabinet or industrial control panel, total cooling loads fall in the 200-900W range. This is well within the range of modern micro DC air conditioning units.

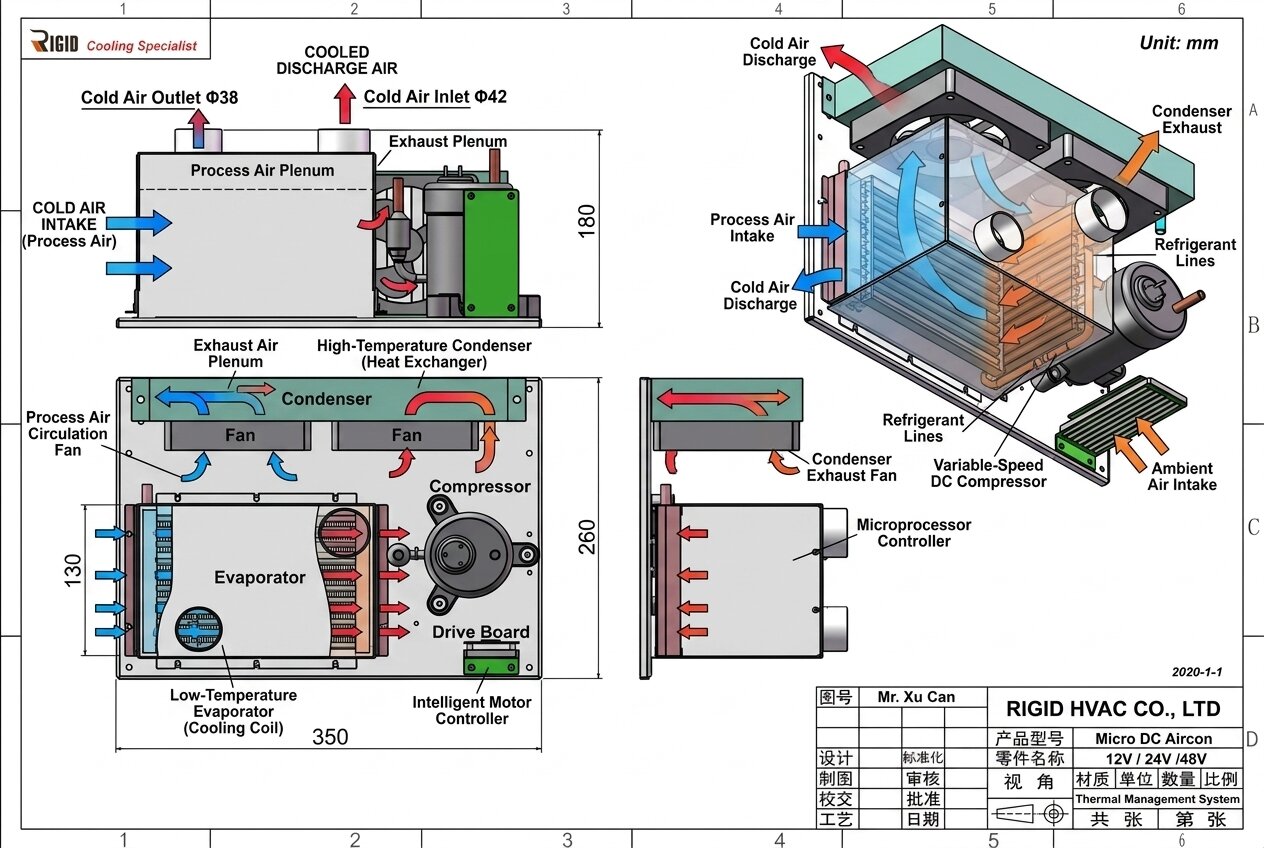

The Micro DC Aircon units I’ve been using come in two sizes that cover most applications: a 450W unit running on 12V DC and a 900W unit on 48V DC. Both weigh around 5kg and use BLDC compressors with R134a refrigerant, pre-charged so there’s no field brazing or vacuum work needed.
What made these practical for my applications:
- True DC operation — no inverter needed. This matters because inverters are another failure point in the field, and many enclosure applications already have DC bus power available (telecom sites run 48V, vehicle/mobile applications run 12V/24V).
- Temperature control range of 5-30°C — you can set it to maintain 25°C, which keeps electronics happy and stays well above typical dew points.
- Compact size — at ~5kg, these mount directly to the enclosure wall or roof without structural modifications.
Installation Lessons From the Field
After deploying about 40 of these across various sites, here’s what I’ve learned about getting the installation right:
Mounting Position Matters
Mount the cooling unit high on the enclosure. Hot air rises, so you want to grab it at the top and return cooled air lower. If you mount low, you’re cooling air that’s already relatively cool while the hot layer at the top stays hot and humid.
Don’t Forget the Drain
The unit will generate condensate — that’s literally the point. The moisture that would have been condensing on your electronics is now condensing on the evaporator coil (in a controlled way) and draining out. Make sure the drain path is clear and won’t get blocked. In dusty environments, I add a small mesh filter on the drain exit.
Set the Right Temperature
There’s a temptation to set the target temperature as low as possible. Don’t. You want the enclosure warm enough to stay above dew point at all times, but cool enough to keep electronics within rated operating temperatures. For most applications, 23-28°C is the sweet spot. Going lower wastes energy and can cause condensation on the enclosure walls if the outside is hotter.
Seal Integrity Still Matters
Active cooling doesn’t eliminate the need for proper sealing. If your enclosure has air leaks, you’re constantly importing new humid air that the cooling system has to dehumidify. Keep your gaskets intact and your cable entries sealed. The cooling system manages the moisture that’s already inside and the small amount that permeates through seals and cable insulation.
When This Approach Is NOT the Right Answer
Being honest about limitations is important. Active micro cooling is overkill or wrong for:
- Very small enclosures (<10L volume) — the unit physically doesn’t fit or the thermal mass is too small to benefit. For junction boxes and small terminal enclosures, desiccants or conformal coating may be sufficient.
- Enclosures with negligible heat load — if there’s almost no internal heat generation and minimal solar exposure (e.g., underground vault), passive solutions like proper ventilation or drainage may be enough.
- Extremely cold environments — if your ambient is below 0°C for extended periods, you need a heater, not a cooler. Some units can operate in heat-pump mode, but that’s a different product selection conversation.
- Budget-constrained, non-critical installations — if the enclosure contains $200 worth of replaceable sensors and the site is easy to access, it might be cheaper to just replace boards annually than to install cooling.
The Economics: When Does Active Cooling Pay For Itself?
For the skeptics who need to justify this to management (I’ve been there), here’s the math I use:
Take your current failure rate and multiply by the cost of each failure. Include:
- Replacement component cost
- Truck roll / site visit cost
- Downtime cost (lost production, SLA penalties, etc.)
- Engineering time to diagnose and replace
In my case, we were seeing 3-4 board failures per year per site, each costing roughly $800-1200 in total response cost. That’s $3,000-5,000 per year per site. The cooling unit pays for itself in the first prevented failure.
For telecom sites with SLA penalties, the math is even more dramatic. One hour of downtime can cost more than the entire cooling system.
Monitoring and Verification
Once you’ve installed active cooling, verify it’s actually solving the problem:
- Temperature/humidity logger — cheap USB loggers can record internal conditions over weeks. You want to see relative humidity staying below 60% at all times, with no spikes to 90%+ during night hours.
- Visual inspection schedule — for the first month, open the enclosure weekly and look for any signs of moisture. Check the drain is flowing during cooling operation.
- Failure rate tracking — the real proof is in reduced failure rates over 6-12 months.
Summary: Stop Replacing Boards, Fix the Environment
If your sealed enclosures are eating electronics, stop blaming the components. The problem is almost certainly condensation from thermal cycling, and the solution is controlling the internal environment rather than trying to keep moisture out of a system that already contains it.
The progression I recommend:
- Confirm the problem — put a humidity logger inside for two weeks and look at the overnight data.
- Size the cooling load — add up internal heat dissipation plus solar/ambient gain.
- Install active cooling with the temperature set to maintain a stable point above dew point.
- Verify with monitoring that humidity stays controlled.
It took me three months of chasing ghosts to figure this out. Hopefully this saves you the same frustration. The physics are simple once you see it: sealed box + temperature cycling + trapped moisture = dead electronics. Control the temperature, and the moisture problem disappears.
Preventing Condensation Sealed Enclosure Failures Long-Term
Once you have solved the immediate condensation sealed enclosure problem, maintaining a dry environment requires ongoing attention. Active cooling systems with proper condensate drainage ensure that moisture is continuously removed rather than accumulating over seasonal temperature cycles. Regular inspection of desiccant condition (if used as supplementary protection) and verification that drain paths remain clear prevents regression to the failure state you originally encountered.
