What Is a DC Air Conditioner and Why It Matters for Off-Grid Cooling
A DC air conditioner runs its compressor, fans, and controls directly on DC power—typically 12V, 24V, or 48V from batteries, solar panels, or vehicle electrical systems. Unlike conventional air conditioners that require 120V or 240V AC power from the grid or a generator, a DC air conditioner operates independently of AC infrastructure, making it the only viable option for true off-grid and mobile cooling.
The distinction is not trivial. Running a standard AC-powered air conditioner from batteries requires an inverter that converts DC to AC, wasting 10-15% of battery energy as heat in the conversion process. The inverter itself adds weight, cost, and another potential failure point. A DC air conditioner eliminates this conversion entirely—every amp-hour in your battery goes directly toward cooling rather than powering conversion electronics.
DC air conditioners serve applications where grid power is unavailable or impractical: van conversions and overlanding vehicles, sailboats and small powerboats, off-grid cabins and tiny houses, emergency shelters, telecommunications cabinets, and portable medical or scientific equipment. In each case, the cooling system must operate from whatever DC power source is available—whether a vehicle alternator, solar panel array, lithium battery bank, or combination of sources.
How DC Air Conditioners Differ from Conventional Units
Beyond the power supply difference, DC air conditioners incorporate design choices optimized for battery-powered operation:

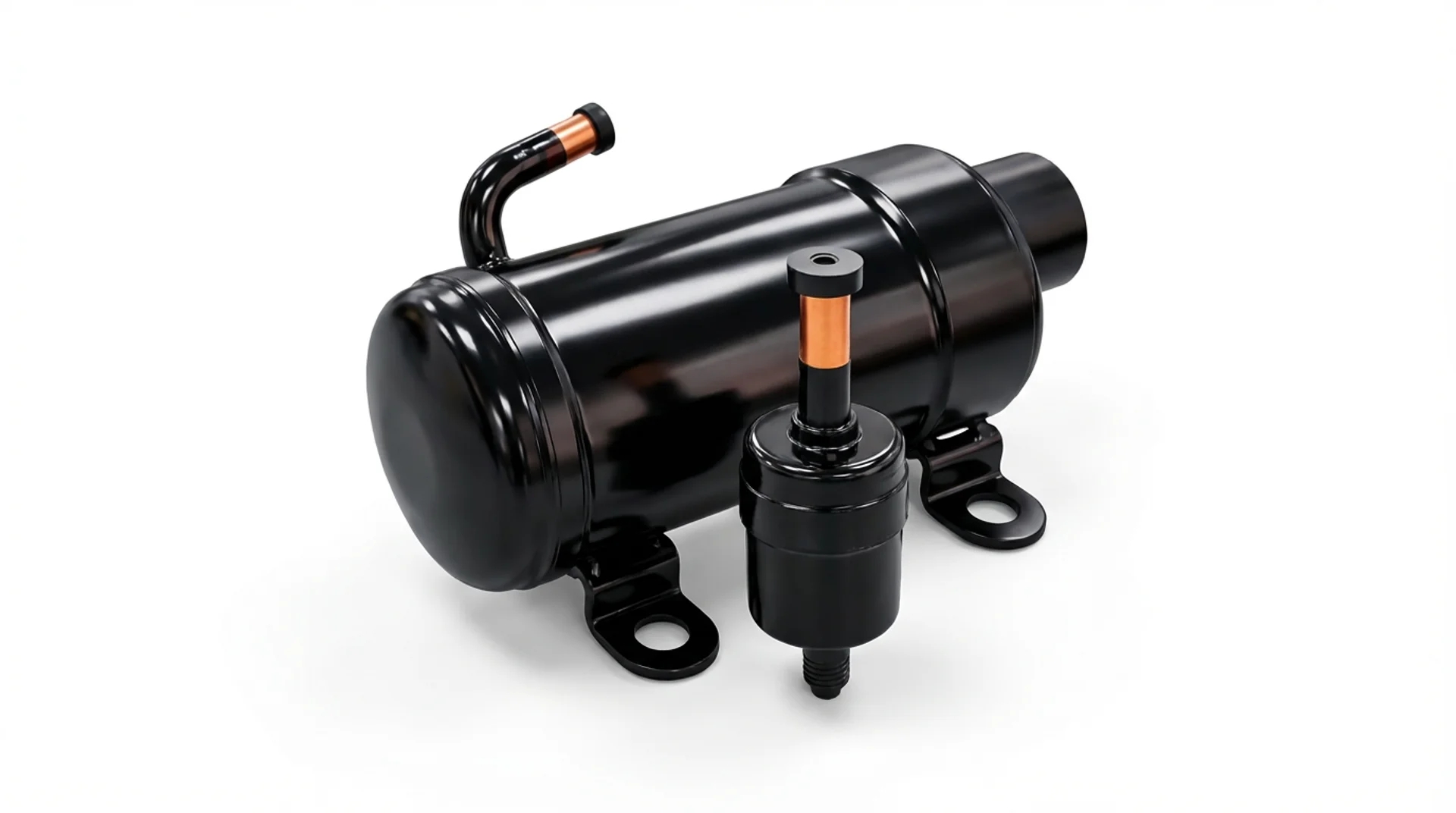

Variable-speed DC compressor: Instead of cycling on and off at full speed like most AC-powered compressors, DC compressors adjust speed continuously based on cooling demand. When the space is nearly at setpoint, the compressor slows down rather than shutting off. This provides tighter temperature control (±0.5°C versus ±2-3°C), eliminates the power surge of compressor startup, and reduces average power consumption by 20-40% compared to on-off cycling at the same cooling load.
Efficient at partial load: Battery-powered systems spend most of their time at partial load—maintaining temperature rather than pulling it down from a hot start. DC compressors operating at 40-60% speed consume proportionally less power while still removing heat. A unit rated at 16A maximum current may average only 6-8A during steady-state operation, extending battery runtime significantly beyond what the maximum rating suggests.
Direct battery connection: DC air conditioners connect directly to the battery bank through appropriate fusing and wiring. No inverter, no transfer switch, no AC breaker panel. This simplicity reduces installation time, eliminates failure modes, and keeps the system compact. Voltage options match common battery configurations: 12V for single automotive batteries, 24V for dual-battery or truck systems, 48V for larger battery banks and solar installations.
Compact and lightweight: Without the transformer, inverter, and heavy AC motor found in conventional units, DC air conditioners weigh less and occupy less space. RIGID’s Micro DC Aircon series weighs approximately 5kg with dimensions around 350×260×180mm—small enough to mount in a van ceiling, boat locker, or equipment enclosure. The Portable DC Air Conditioner weighs 11kg and provides higher capacity for larger spaces.
Cooling Capacity: Matching the Unit to Your Space
DC air conditioners currently available in compact form factors provide cooling capacity from 450W to 2,300W (1,535 to 7,843 BTU). Understanding which capacity suits your space prevents undersizing (uncomfortable) or oversizing (wasted battery):
450-550W (1,535-1,876 BTU) — Micro DC Aircon: Suits spaces up to 3-4 cubic meters with moderate heat load. Ideal for: van sleeping area (cooling the bed zone, not the entire van), small boat cabin, equipment enclosure up to 200W internal heat load, pet transport crate in hot weather. Current draw: 8-12A at 12V. Available in 12V and 24V configurations. At steady state, expect 4-8 hours runtime from a 100Ah lithium battery depending on ambient temperature and insulation quality.
700W (2,387 BTU) — Portable DC Air Conditioner and larger Micro Aircon: Handles spaces up to 6-8 cubic meters or higher heat loads. Suitable for: full van conversion living space, mid-size boat cabin, small office or shelter, multiple equipment racks. Current draw: up to 16A at 12V (maximum), averaging 8-10A at steady state. Available in 12V, 24V, and 48V. Runtime from 100Ah lithium battery: 6-12 hours depending on conditions.
2,300W (7,843 BTU) — Truck DC Air Conditioner (HS23P): Designed for larger enclosed spaces with significant heat load. Suits: truck sleeper cabs, heavy equipment operator cabs, small rooms up to 15-20 square meters. Available in 24V, 48V, and 72V configurations. This is a split system with separate indoor and outdoor units—not a compact portable unit. Requires professional installation.
Power Consumption and Battery Sizing
Battery runtime is the primary concern for off-grid DC air conditioning. Understanding real-world power consumption prevents disappointing results:
Maximum vs average current: Manufacturers specify maximum current draw, but average consumption during steady-state cooling is typically 40-60% of maximum. A unit rated at 16A maximum may average 8A when maintaining temperature in a well-insulated space. Use average current—not maximum—when calculating battery runtime for sustained operation.
Battery sizing formula: Runtime (hours) = Usable battery capacity (Ah) ÷ Average current draw (A). For a 200Ah lithium battery (90% usable = 180Ah) with an 8A average draw: 180 ÷ 8 = 22.5 hours. For lead-acid batteries, use only 50% of rated capacity to prevent damage: 200Ah × 0.5 ÷ 8 = 12.5 hours.
Solar supplementation: Solar panels can extend runtime significantly. A 400W solar array produces roughly 25-30A at 12V during peak sun hours (approximately 5-6 hours per day in summer). This can fully offset the cooling system’s power consumption during daylight, reserving battery capacity for evening and nighttime operation. The combination of solar charging during the day and battery-powered cooling at night provides 24-hour comfort without generator use.
Real-world examples:
- Van conversion, summer desert (40°C ambient): Micro DC Aircon at 450W, averaging 10A at 12V. 200Ah lithium battery provides approximately 18 hours. With 300W solar panel, effectively unlimited daytime runtime.
- Sailboat cabin, tropical anchorage (32°C ambient): Portable DC AC at 700W, averaging 8A at 12V. 400Ah house bank provides approximately 45 hours. Solar recharge during sailing extends capacity indefinitely.
- Off-grid cabin, summer (35°C ambient): 48V system with DV3830E-AC at 650W. From 48V/100Ah battery bank (4.8 kWh), approximately 10-12 hours runtime at average load.
Installation Options
DC air conditioners offer flexible installation depending on the application:
Self-contained portable units: The Portable DC Air Conditioner series (LC28-AC) includes evaporator, compressor, and condenser in one unit. Cold air exits from the front while hot exhaust air must be ducted outside through a window, hatch, or wall port. Best for temporary installations or applications where permanent mounting is not desired. Requires a 100-150mm exhaust port.
Split mini-systems: The Micro DC Aircon series separates the evaporator (indoor unit) from the condenser. The indoor unit mounts inside the space, connected to the compressor/condenser module by refrigerant lines. Pre-charged refrigerant with quick-connect fittings enables installation without HVAC tools or certifications—connect the lines, mount the units, wire to power. The outdoor/external unit needs airflow for heat rejection.
Water cooled configurations: For applications where venting hot air outside is impractical (below-deck marine, sealed enclosures), water cooled models reject heat through a liquid loop to an external radiator or seawater heat exchanger. This adds a small pump and water piping but eliminates the need for outdoor condenser airflow. See our DC air conditioning product page for water cooled configuration options.
Choosing Between 12V, 24V, and 48V Systems
Voltage selection depends on your existing electrical system and cooling capacity requirements:
12V systems: Compatible with standard automotive batteries and most van/RV electrical systems. Widest compatibility but highest current draw for a given cooling capacity—a 700W cooling system draws up to 16A at 12V, requiring 10 AWG or larger wiring for runs over 3 meters. Best for: single-battery vehicles, small boats with 12V systems, retrofit installations where 12V infrastructure exists.
24V systems: Common in trucks, larger boats, and purpose-built off-grid installations. Half the current draw of 12V for the same power, reducing wire gauge requirements and voltage drop. Best for: trucks and commercial vehicles, dual-battery marine systems, dedicated off-grid builds where the electrical system is designed from scratch.
48V systems: Used in larger battery banks, solar installations, and some electric vehicles. Lowest current draw, smallest wiring, and best efficiency for higher-capacity cooling. Best for: off-grid cabins with 48V solar systems, electric boats, telecom installations, and applications requiring 650W+ cooling capacity.
DC Air Conditioner Comparison: Portable vs Split vs Truck Systems
Choosing the right DC air conditioner type depends on your space, installation permanence, and cooling demand. Here is how the three main configurations compare:
| Feature | Portable DC AC (LC28-AC) | Micro DC Aircon (Split) | Truck DC AC (HS23P) |
|---|---|---|---|
| Cooling Capacity | 1,100W (3,750 BTU) | 700-2,000W | 2,300W (7,843 BTU) |
| Power Supply | 12/24V DC | 12/24V DC | 24/48/60/72V DC |
| Refrigerant | R134a | R134a | R134a (SANYO compressor) |
| Installation | No install—place and duct exhaust | Wall/ceiling mount, pre-charged lines | Professional split install |
| Best For | Temporary cooling, rentals, multi-use | Vans, boats, small cabins | Truck sleepers, heavy equipment cabs |
| Portability | Fully portable (~11 kg) | Semi-permanent | Permanent mount |
The Portable DC Air Conditioner at 1,100W cooling capacity hits the sweet spot for users who need flexibility—move it from the van to the tent to the workshop as needs change. The Micro DC Aircon split system suits permanent installations where you want clean indoor aesthetics without a bulky window unit. The Truck DC AC with its SANYO compressor delivers the raw cooling power needed for larger enclosed spaces where 48V or 72V battery systems are available.
Common Mistakes When Installing a DC Air Conditioner
Field experience reveals several installation errors that reduce DC air conditioner performance or cause premature failure:
Undersized wiring: This is the most common mistake in 12V systems. A DC air conditioner drawing 16A at 12V needs 192W of power flowing through the wires. At 12V, even modest voltage drop is proportionally significant—a 1V drop (8.3%) at 12V wastes the same percentage as a 10V drop at 120V. Use minimum 10 AWG wire for any run over 2 meters at 12V, and 8 AWG for runs over 4 meters. Undersized wiring causes the compressor to receive insufficient voltage, reducing its speed, cooling capacity, and efficiency while generating waste heat in the wires themselves.
Poor exhaust ducting on portable units: The portable DC air conditioner rejects heat through its condenser exhaust. If that hot air recirculates into the cooled space—because the exhaust duct is too short, kinked, or poorly sealed at the window port—the unit fights itself. Effective ducting is straight, insulated, and sealed at the penetration point. Every 90-degree bend in the exhaust duct adds equivalent length and back-pressure, reducing airflow across the condenser and degrading cooling performance by 10-15% per bend.
Ignoring condensate management: DC air conditioners extract moisture from air as a byproduct of cooling. In humid environments (coastal areas, tropical climates), a unit removing 700W of sensible heat may also extract 1-2 liters of water per hour. Without proper drainage—either gravity drain to outside, a condensate pump, or a collection tray—water accumulates inside the unit or drips onto the floor. Marine and van installations particularly need planned condensate routing to prevent corrosion and mold growth in enclosed spaces.
No ventilation for condenser heat rejection: Split systems and portable units both need to reject absorbed heat somewhere outside the cooled space. Installing the outdoor unit in an enclosed, unventilated compartment causes heat buildup that progressively reduces cooling capacity. Ensure the condenser unit has at least 300mm of clearance on all sides and unobstructed airflow for heat dissipation. In below-deck marine installations, a dedicated ventilation fan for the condenser compartment is often necessary.
Maintenance and Longevity
DC air conditioners require minimal maintenance compared to generator-dependent conventional systems:
Regular care: Clean the evaporator air filter monthly during heavy use (dusty environments may need weekly cleaning). Inspect condenser coils or external heat exchanger for debris. Check refrigerant line connections for tightness. Verify electrical connections remain secure—vibration in mobile installations can loosen terminals over time.
Seasonal maintenance: Before the cooling season, run the system for 30 minutes to verify proper operation. Check coolant level in water cooled systems. Inspect flexible refrigerant lines for chafing or kinking. Test the thermostat or temperature controller accuracy with an independent thermometer.
Longevity factors: DC compressors with variable-speed operation experience less wear than fixed-speed units because they avoid the mechanical stress of repeated start-stop cycling. Expect 8,000-15,000 hours of compressor life with proper maintenance—equivalent to 5-10 years of seasonal use or 3-5 years of continuous operation. The most common maintenance issue in mobile installations is vibration-related connection loosening, which is easily prevented with lock-tight fittings and periodic inspection.
