Rethinking the EV Battery Cooling System: Why Liquid Isn’t Always the Answer
When engineers discuss an ev battery cooling system, the conversation almost always gravitates toward liquid cooling — cold plates, glycol loops, chillers, and the associated plumbing. For high-performance passenger EVs pushing hundreds of kilowatts through large battery packs, that emphasis makes sense. Liquid cooling offers high heat-flux density and tight cell-to-cell temperature uniformity that air alone cannot match at scale.
But the EV battery landscape extends well beyond passenger cars. Charging-station battery cabinets, low-speed electric vehicles (LSVs), battery-swapping stations, telecom backup packs, and small energy-storage enclosures all contain lithium cells that need thermal management — yet many of these applications generate moderate heat loads, sit inside sealed enclosures, and operate on DC bus voltages of 12 V, 24 V, or 48 V. For these scenarios, a well-engineered air-cooling approach can be simpler, lighter, and more maintainable than a liquid loop.
This article compares the two thermal-management paths and maps out where compact DC air conditioning — specifically the Micro DC Aircon product line — fits within the broader ev battery cooling system design space. The goal is not to declare a winner, but to give thermal engineers a clearer decision framework based on heat load, enclosure type, and maintenance constraints.
Liquid Cooling vs. Air Cooling: A Technical Comparison for Battery Thermal Management
Both approaches move heat away from battery cells, but they do so through fundamentally different mechanisms and carry different engineering trade-offs.
Liquid cooling circulates a coolant (typically a water-glycol mix) through cold plates or channels bonded to cell surfaces. It excels at removing large heat loads (often several kilowatts or more) and maintaining cell-to-cell temperature deltas below 3–5 °C across packs exceeding 50 kWh. The trade-off is complexity: pumps, hoses, fittings, expansion tanks, coolant quality monitoring, and leak-detection circuits all become part of the BMS integration scope. Any coolant leak inside a high-voltage battery enclosure introduces both corrosion and electrical-safety risks.
Air cooling removes heat by circulating conditioned air through or around the battery enclosure. A self-contained DC air-conditioning unit cools the air inside the sealed space, and the air in turn absorbs heat from cell surfaces. The thermal resistance between air and cell walls is higher than between a cold plate and a cell, so air cooling is best suited to moderate heat loads — generally in the range of a few hundred watts up to roughly 1 kW of continuous dissipation. Within that envelope, air cooling eliminates the plumbing entirely: no coolant, no pump, no leak paths.
Neither approach is universally superior. The right choice depends on the heat load, the enclosure volume, the acceptable temperature window, and the maintenance environment. What follows is a closer look at the engineering case for air cooling in the applications where it genuinely fits.
Engineering Advantages of Air Cooling for Battery Enclosures
For applications that fall within the air-cooling envelope, the engineering benefits are tangible and measurable. Each advantage below addresses a real pain point that thermal engineers encounter when designing liquid-cooled systems for smaller battery installations.
Zero leak risk. A sealed compressor-based DC aircon unit has no external fluid loop. There are no hoses to age, no fittings to vibrate loose, and no coolant to contaminate cell terminals. For battery enclosures deployed in remote or unattended locations — roadside charging cabinets, telecom sites, agricultural equipment — eliminating leak risk directly reduces field-failure modes. In liquid-cooled systems, even a slow drip can cause corrosion on bus bars or cell terminals over weeks, leading to insulation resistance faults that are expensive to diagnose in the field.
No coolant maintenance. Liquid-cooled systems require periodic coolant checks, pH monitoring, and eventual fluid replacement. Over a five-year deployment, coolant maintenance adds both cost and logistical complexity, especially for distributed installations where a technician must visit each site. Air-cooled enclosures skip this entirely. The Micro DC Aircon units ship pre-charged with refrigerant (R134a or R290 depending on model) in a hermetically sealed circuit, so there is no field charging or refrigerant handling required. The sealed refrigerant loop is maintenance-free under normal operating conditions.
Simplified BMS integration. A DC aircon unit draws power directly from the battery bus — 12 V, 24 V, or 48 V — without an inverter. Control interfaces include potentiometer, 0–5 V analog, PWM, and TTL serial, which map directly to standard BMS output channels. Compared to managing a pump, a flow sensor, a coolant-temperature sensor, and a leak-detection loop, integrating a single aircon unit with variable-speed control is a lighter software and wiring task. For engineering teams working on tight development timelines, this reduction in integration scope can shorten the thermal-subsystem validation cycle noticeably.

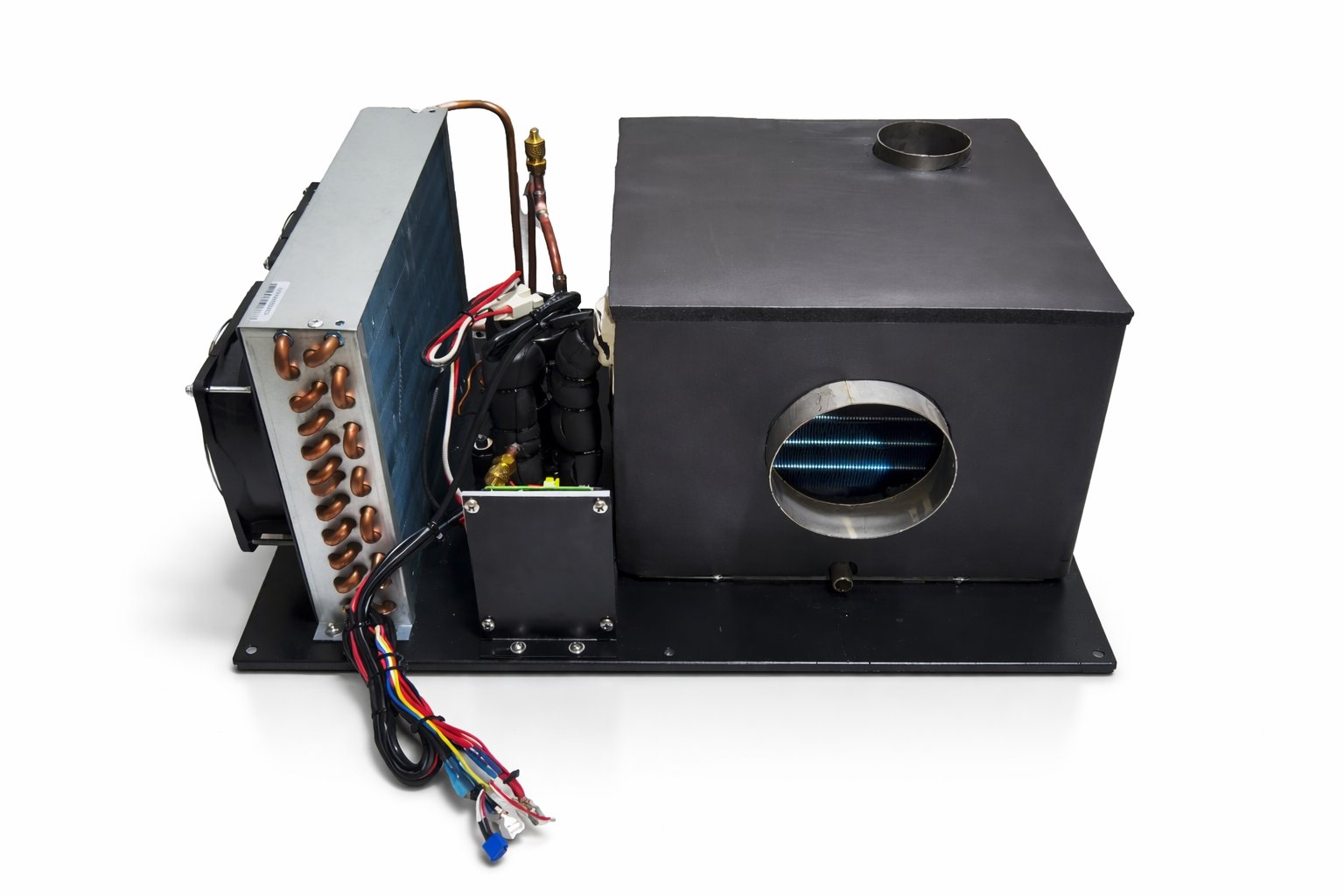

Compact footprint and low weight. The Micro DC Aircon units weigh approximately 5 kg (11 lbs) and are designed for confined-space mounting. For battery enclosures where every kilogram and every cubic centimeter matters — such as on a low-speed EV chassis or inside a wall-mounted energy cabinet — this compactness is a practical advantage over a liquid loop that includes a chiller, pump, reservoir, and routing hoses. The weight savings also matter for mobile applications where payload capacity is limited.
BLDC Sine Wave Inverter drive. The compressor in each Micro DC Aircon unit is driven by a brushless DC motor with sine-wave inverter control. This enables variable-speed operation, which means the unit can modulate cooling output to match the real-time heat load rather than cycling on and off. The result is tighter temperature control within the 5 °C to 30 °C cooling range and lower acoustic noise — relevant for enclosures near people or in noise-sensitive environments. Variable-speed operation also reduces inrush current on the DC bus, which simplifies the power-budget calculations for the battery management system.
Where Air Cooling Fits: Practical EV Battery Scenarios
The following application categories are, based on field experience, well-suited to air-cooled thermal management. These are generalizations; actual suitability depends on specific heat-load calculations for each design.
Charging-station battery cabinets. Grid-buffering battery cabinets at DC fast-charging stations typically house 10–30 kWh of cells in a sealed outdoor enclosure. Heat generation during charge and discharge cycles is moderate, and the enclosure must remain sealed against dust and moisture (often IP55 or higher). A 700 W or 900 W Micro DC Aircon unit (such as the DV2820E-AC at 700 W / 2,387 BTU or the DV3820E-AC at 900 W / 3,069 BTU on a 24 V bus) can maintain enclosure temperature within the target window without any liquid plumbing penetrating the enclosure walls. Because these cabinets are often deployed at unmanned sites, the zero-maintenance aspect of air cooling is particularly valuable — there is no coolant loop to inspect on quarterly service visits.
Low-speed electric vehicles. Golf carts, neighborhood EVs, electric forklifts, and small utility vehicles typically carry battery packs in the 5–20 kWh range with C-rates well below 1C during normal operation. Heat loads are modest, and the vehicle’s DC bus (commonly 24 V or 48 V) can directly power a Micro DC Aircon unit. The DV1920E-AC (450 W / 1,535 BTU, 24 V) or DV1930E-AC (450 W / 1,535 BTU, 48 V) are sized for these lighter thermal loads. For fleet operators managing dozens or hundreds of low-speed EVs, the absence of coolant maintenance across the fleet translates to meaningful reductions in total cost of ownership.
Small energy-storage enclosures. Residential and small commercial energy-storage systems (ESS) in the 5–15 kWh range often sit in garages, utility rooms, or outdoor wall-mounted cabinets. Air cooling keeps the enclosure sealed and avoids introducing a liquid loop into a space where homeowners or general maintenance staff may interact with the equipment. A 450 W or 550 W unit (DV3220E-AC at 550 W / 1,876 BTU, 24 V) typically covers the thermal load in these installations. The compact form factor also means the cooling unit can be integrated directly into the enclosure housing without requiring external mounting brackets or additional weatherproofing.
Battery-swapping station modules. Swapping stations for two-wheelers and light commercial vehicles house multiple small battery modules in individual bays. Each bay generates a limited heat load, and a compact aircon unit per bay or per group of bays can provide independent thermal zones without cross-contamination risk from shared coolant loops. If one bay’s cooling unit requires service, the others continue operating independently — a resilience advantage over a shared liquid circuit where a single pump failure affects all bays.
For applications requiring the R290 (propane) refrigerant — increasingly preferred in European markets for its lower global warming potential — the DV2820E-AC-T (700 W / 2,387 BTU, 24 V, R290) provides the same cooling capacity with a GWP below 5. This can simplify regulatory compliance in jurisdictions that restrict high-GWP refrigerants in new installations.
Where Air Cooling Reaches Its Limits
Honesty about boundaries is as important as highlighting strengths. Air cooling is not the right tool for every ev battery cooling system, and understanding where it falls short helps engineers avoid costly redesigns.
High-rate fast-charging packs. Battery packs designed for 2C or higher sustained charge rates — common in passenger EV platforms supporting 150 kW+ DC fast charging — generate heat loads that can exceed several kilowatts continuously. The thermal resistance of an air path cannot remove this much heat quickly enough to keep cell temperatures within safe limits. Liquid cooling with direct cold-plate contact is the established approach here, and for good reason: the thermal conductivity advantage of a liquid-to-metal interface over an air-to-metal interface is roughly an order of magnitude.
Large traction battery packs above approximately 50 kWh. As pack capacity grows, total heat generation during charge and discharge scales accordingly, and the physical distance between the cooling source and the farthest cells increases. Liquid cooling’s ability to distribute coolant uniformly across a large pack area gives it a structural advantage that air circulation within an enclosure cannot replicate at this scale. The temperature gradient from the aircon outlet to the far corner of a large enclosure would exceed acceptable limits for most cell chemistries.
Packs with very tight cell-to-cell temperature uniformity requirements. Some cell chemistries and pack designs require cell-to-cell deltas below 2–3 °C under load. Achieving this with air alone is difficult because air’s lower thermal conductivity and the turbulence patterns inside an enclosure create inherent temperature gradients. Cold plates in direct contact with cells offer more deterministic thermal paths and tighter control over local cell temperatures.
These boundaries are not absolute — they depend on enclosure geometry, ambient conditions, duty cycle, and cell chemistry. But as a rule of thumb (based on industry experience, not a guarantee), air cooling works well for continuous heat loads up to roughly 900 W in enclosures where the Micro DC Aircon product line operates, and liquid cooling becomes the practical choice above that range.
Integration Considerations for Thermal Engineers
When specifying a Micro DC Aircon unit for a battery enclosure, a few integration points deserve attention. First, ensure the enclosure’s internal air circulation path allows the conditioned air to reach all cell surfaces — baffles or directed airflow channels improve uniformity and reduce hot spots near the enclosure corners. Second, the unit’s variable-speed control (via 0–5 V, PWM, or TTL) should be mapped to the BMS thermal-management algorithm so that cooling output tracks actual cell temperature, not just ambient conditions. Third, for outdoor enclosures, position the condenser side of the unit where it has adequate airflow for heat rejection, and account for the ambient temperature range in your cooling-capacity calculations. The full Micro DC Aircon product line and specifications are available for detailed sizing.
Air cooling will not replace liquid cooling for high-power EV traction batteries. But for the growing number of battery enclosures, cabinets, and small packs that operate within moderate thermal envelopes, a compact DC aircon unit offers a simpler, lighter, and more maintainable path to reliable thermal management — one that eliminates the plumbing and keeps the engineering focused on the cells themselves. For thermal engineers evaluating their next battery enclosure design, the question is not which cooling method is better in the abstract, but which one matches the specific heat load, deployment environment, and maintenance reality of the application at hand.
