Stirling Cryocooler Types: FPSC vs Kinematic — Which One Fits Your Application?
Choosing the right stirling cryocooler starts with understanding the two main architectures available today: Free Piston Stirling Coolers (FPSC) and kinematic Stirling coolers. Each design serves different operational needs, and selecting the wrong type can mean overspending on features you don’t need — or worse, underperforming in your target application.
This buying guide walks you through the key differences between these cooler types, explains temperature range capabilities, breaks down pricing factors, and helps you match the right unit to your specific use case. Whether you’re outfitting a gas analysis lab, building a portable medical device, or integrating cryogenic cooling into semiconductor equipment, the information here will help you make a well-informed procurement decision.
Understanding the Two Main Stirling Cooler Architectures
Free Piston Stirling Coolers (FPSC)
Free Piston Stirling Coolers represent the more modern approach to Stirling-cycle refrigeration. The FPSC design uses only two moving parts — a piston and a displacer — suspended by gas bearings or magnetic levitation (MagLev) technology. Because there are no mechanical linkages, crankshafts, or oil-lubricated seals, FPSC units are completely sealed systems with no maintenance requirements.
The working gas (helium) is permanently sealed inside a welded pressure vessel. There is literally no way to access the internal components, and no reason to. This sealed architecture eliminates refrigerant leakage concerns and removes the need for scheduled servicing intervals.
Key characteristics of FPSC units include:
- Oil-free and CFC-free operation
- Helium working gas (environmentally inert)
- No mechanical wear points
- Vibration levels low enough for sensitive instrumentation
- Orientation-independent mounting (360° installation flexibility)
- DC power input (12V or 24V options)
- Compact form factors starting from approximately 2.2 kg

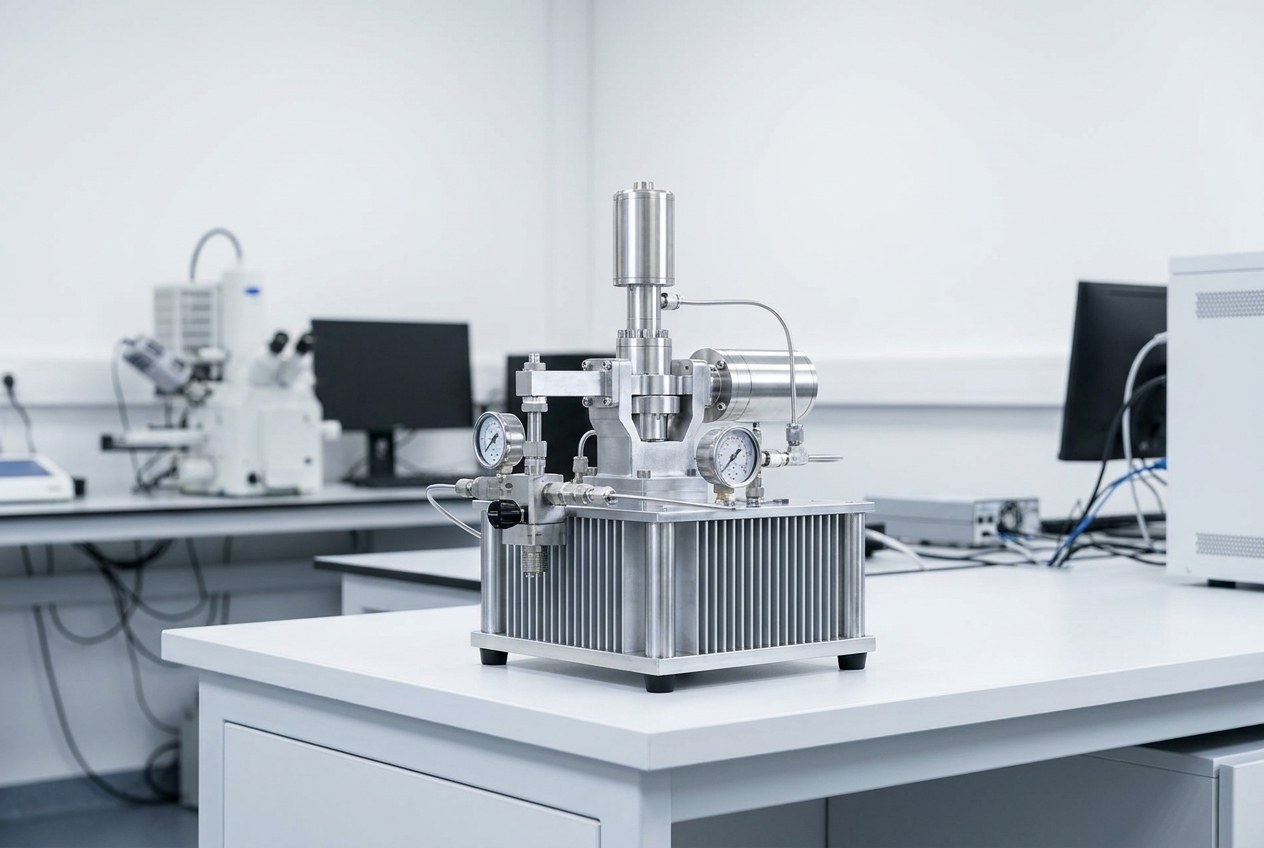

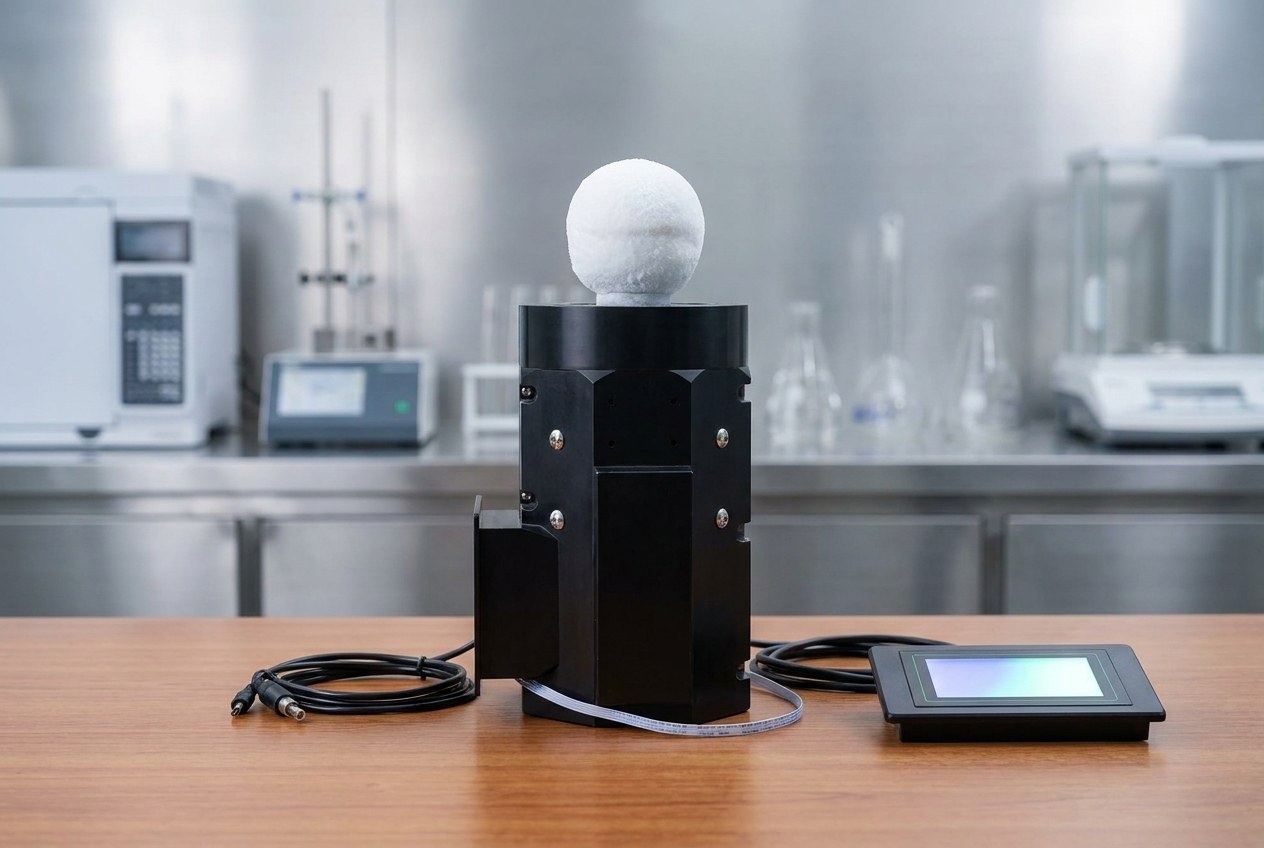

RIGID’s RS series exemplifies this architecture, with models ranging from the RS40 (40W cooling capacity, 12V DC) through the RS100 Plus (100W capacity, 24-30V DC) capable of reaching -160°C at the cold fin.
Kinematic Stirling Coolers
Kinematic Stirling coolers use a mechanical crankshaft to drive the piston and displacer. This older design approach creates a fixed phase relationship between the moving components. While kinematic units can deliver higher cooling power at certain temperature ranges, they come with trade-offs that matter for many applications.
The mechanical linkage introduces oil seals, bearing wear, and vibration. These units typically require periodic maintenance, have orientation restrictions, and generate more mechanical noise. They also tend to be larger and heavier than equivalent FPSC units.
Kinematic coolers may still be appropriate for stationary laboratory installations where vibration isolation is already built into the setup and where raw cooling power at moderate cryogenic temperatures is the primary requirement.
Head-to-Head Comparison
| Feature | FPSC | Kinematic |
|---|---|---|
| Moving parts | 2 (piston + displacer) | Multiple (crankshaft, linkages, seals) |
| Maintenance | Zero — sealed system | Periodic (oil, seals) |
| Orientation | Any direction | Usually restricted |
| Vibration | Very low | Moderate to high |
| Weight (typical) | 2-7 kg | 10-50+ kg |
| Power source | DC (12-30V) | Usually AC mains |
| Lifetime | >50,000 hours (MTTF >200,000 hours) | Varies, maintenance-dependent |
| Oil/CFC | None | Oil required |
Temperature Range Capabilities Across the RS Series
One of the most important specifications when purchasing a stirling cryocooler is the achievable temperature range. RIGID’s FPSC lineup covers a broad spectrum from mild cooling down to liquid nitrogen temperatures:
RS40
- Cold fin temperature range: -100°C to 0°C
- Cooling capacity: 40W
- Input power: 12V DC
- Working current: 6A
- Noise: ≤38 dB
- Coolant: Helium (2.5g)
- Weight: approximately 2.2 kg (cooler only) / 6 kg (with controller)
- Dimensions: OD Ф86mm × Length 260mm
RS80
- Cold fin temperature range: -120°C to 0°C
- Cooling capacity: 80W
- Input power: 24V DC
- Working current: 6A
- Noise: ≤48 dB
RS100
- Cold fin temperature range: -150°C to 0°C
- Cooling capacity: 100W
- Input power: 24-30V DC
- Working current: 6A
- Noise: ≤48 dB
- Coolant: Helium (3g)
- Weight: 3.3 kg (cooler) / 7 kg (with controller)
- Dimensions: 132 × 132 × 336mm
RS100 Plus
- Cold fin temperature range: -160°C to 0°C
- Cooling capacity: 100W
- Input power: 24-30V DC
- Working current: 6A
- Noise: ≤48 dB
- Coolant: Helium (3g)
- Weight: 7 kg (with controller)
- Dimensions: 167 × 156 × 291mm
- Can operate in vacuum environments
RS100 Plus 77K (Cascade Configuration)
- Cold fin temperature range: -160°C to -204°C
- Cooling capacity: >5W at -196°C
- Input power: 12-30V DC
- Rated current: 3-8A (maximum 10A)
- Weight: 4.0 kg
- Dimensions: 167 × 156 × 338mm
- Designed for liquid nitrogen generation
A practical note on temperature specifications: the cold fin temperature represents the temperature at the cooler’s cold end surface. Your actual application temperature will be somewhat warmer depending on thermal interface design, heat load, insulation quality, and ambient conditions. As a rough estimate, expect approximately 5-15°C difference between cold fin temperature and the temperature of the object being cooled, though this varies significantly with thermal interface design.
Pricing Factors: What Drives the Cost of a Stirling Cryocooler
Stirling cryocooler pricing is not as straightforward as looking up a catalog number. Several factors influence the final cost of your cooling solution:
1. Cooling Capacity and Temperature Range
As a general rule of thumb, units capable of reaching lower temperatures and delivering higher cooling power at those temperatures cost more. The RS40 at -100°C represents the entry point, while the RS100 Plus 77K capable of reaching -196°C sits at the higher end of the range. This is approximate — actual pricing depends on current production volumes and configuration.
2. System Completeness
The base cooler unit is just one component. A complete system typically includes:
- The FPSC cooler module
- Main drive board (controls piston operation)
- Temperature control board
- Heat rejection system (fins or liquid cooling on the hot side)
- Cold-side thermal interface (cold plate, cold fin, or custom evaporator)
- Vacuum flange (for Dewar or cryostat attachment)
RIGID offers integrated units where the cooler, drive board, temperature control, and fan are combined into a single assembly. This reduces your engineering integration effort but may cost more than a bare cooler module.
3. Custom Thermal Interface Design
Most applications require a custom cold-side solution. Options include aluminum cold plates, copper tube configurations, thermosyphon systems, or brine/glycol circulation loops. Custom cold tips do not typically increase lead time — they ship with the cooler — but they add to the total system cost.
4. Volume and Project Stage
Single-unit purchases for prototyping carry different pricing than volume production orders. If you’re evaluating the technology for a new product design, expect prototype pricing to be higher per unit. Volume commitments typically unlock better pricing structures.
5. Integration Support
RIGID provides engineering support for system integration, including custom design collaboration, prototype development, and verification testing. The level of engineering support you need will factor into overall project cost.
Application Matching: Choosing the Right Model
Selecting the correct stirling cryocooler model depends on matching your application requirements to the cooler’s capabilities. Here’s how to think about it:
Gas Analysis and Petroleum Testing
Gas analyzers and petroleum testing equipment typically need temperatures in the -40°C to -80°C range with precise temperature control (±0.1°C). The RS40 or RS80 models are well-suited here, offering sufficient cooling capacity with the smallest footprint and lowest power draw. The 12V DC input of the RS40 makes it particularly suitable for portable field instruments.
Portable Medical and Vaccine Transport
Cold chain logistics for vaccines and biological samples require -86°C capability with battery backup options. RIGID offers purpose-built vaccine freezer configurations (1-liter capacity with built-in battery providing ≥1 hour of operation) and portable freezers (10-40 liter options). These use the RS100 platform with 12-24V DC input, making them compatible with vehicle power systems and solar installations.
Infrared Detectors and Semiconductor Cooling
IR detector cooling and semiconductor applications often need temperatures below -100°C with extremely low vibration. The RS100 or RS100 Plus models deliver the necessary temperature range while maintaining vibration levels compatible with sensitive optical and electronic systems. The orientation-independent mounting is valuable for instruments that may operate in varying positions.
Laboratory Cryostats and Research Equipment
Research applications requiring temperatures approaching -160°C should look at the RS100 Plus, which is the only model rated for vacuum operation. For liquid nitrogen generation or applications needing -196°C, the RS100 Plus 77K cascade configuration delivers >5W of cooling at that temperature — sufficient for small-scale LN2 production or direct cooling of research instruments.
Applications Where Stirling Cryocoolers Are NOT Suitable
It’s equally important to understand the boundaries. Stirling cryocoolers are not appropriate for:
- High heat load applications: If you need more than 100W of cooling capacity at cryogenic temperatures, a single FPSC unit won’t suffice. Large-scale industrial cooling, walk-in freezers, or high-throughput processing lines require different technology.
- Temperatures below -204°C: Even the cascade 77K configuration bottoms out around -204°C. Applications requiring temperatures approaching absolute zero (millikelvin range) need pulse tube coolers or dilution refrigerators.
- Rapid cooldown of large thermal masses: While the FPSC can reach -100°C in approximately 4 minutes at the cold fin, cooling a large thermal mass takes considerably longer. If you need to cycle large volumes quickly, the 40-100W capacity may be insufficient.
- Environments above +45°C ambient: All RS series models are rated for 0°C to +45°C ambient working temperature. Desert or high-temperature industrial environments may exceed this range.
Thermal Interface Design Considerations for Buyers
Your choice of thermal interface between the cooler’s cold fin and your application significantly affects real-world performance. RIGID identifies four main approaches:
- Direct conductive connection: An aluminum plate attached directly to the cold fin. Simple but creates uneven cooling and transfers vibration directly to your system.
- Heat exchanger with fan: Optimal thermal resistance but susceptible to frost accumulation blocking airflow. Requires a fan motor rated for your operating temperature.
- Thermosyphon: Two-phase heat transport provides even cooling with minimal thermal resistance. Requires appropriate working fluid for your temperature range.
- Brine/glycol/nitrogen circulation: Flexible routing with uniform cooling, but adds pump heat load and introduces potential leak points.
For most buyers, discussing your specific thermal interface needs with RIGID’s engineering team during the quotation process is the most efficient path. Custom cold tips and heat exchangers ship with the cooler at no additional lead time.
Procurement Checklist: What to Specify When Requesting a Quote
When reaching out for pricing, prepare the following information to get an accurate quote quickly:
- Target temperature: What temperature does your application need at the cooled object (not the cold fin)?
- Heat load: How many watts of heat does your application generate that the cooler must remove?
- Ambient conditions: What is the maximum ambient temperature in your operating environment?
- Power available: DC voltage and current capacity at your installation point
- Space constraints: Maximum dimensions available for the cooler assembly
- Orientation: Will the cooler operate in a fixed position or variable orientations?
- Vacuum operation: Does the cold end need to operate in vacuum?
- Vibration sensitivity: How sensitive is your application to mechanical vibration?
- Quantity: Prototype evaluation or production volume (estimated annual quantity)
- Thermal interface preference: Do you have a preferred cold-side configuration, or do you need engineering guidance?
For applications requiring compact, DC-powered cooling solutions in the moderate cryogenic range, you may also want to explore RIGID’s micro DC air conditioning systems which serve adjacent use cases in confined-space cooling.
Lifetime and Total Cost of Ownership
One of the strongest arguments for FPSC technology is the total cost of ownership over the cooler’s operational life. With a design life of 5 years (recommended service interval) and a mean time to failure exceeding 200,000 hours (approximately 23 years of continuous operation), the maintenance cost is effectively zero.
Compare this to kinematic systems requiring periodic oil changes, seal replacements, and potential compressor rebuilds. Over a 10-year instrument lifecycle, the maintenance savings alone can offset a higher initial purchase price for FPSC technology.
Additional factors reducing total cost of ownership:
- No refrigerant top-ups or leak repairs (sealed helium system)
- No oil disposal costs
- No scheduled downtime for maintenance
- Lower power consumption (approximately 50% energy savings compared to equivalent mechanical systems, per manufacturer data)
- Reduced vibration means less wear on connected instrumentation
Making Your Decision
The stirling cryocooler market has matured significantly, and FPSC technology has made cryogenic cooling accessible for applications that previously couldn’t justify the size, weight, maintenance burden, or power requirements of traditional systems. For most new designs requiring cooling between 0°C and -160°C with modest heat loads (up to 100W), an FPSC unit from the RS series will likely be the most practical choice.
Start by identifying your temperature requirement and heat load, then work backward to the appropriate model. Factor in your thermal interface needs, power constraints, and volume expectations. And don’t hesitate to engage RIGID’s engineering team early in your design process — their experience integrating these coolers across diverse applications can save you significant development time.
